launch kw901 elm327 Bluetooth eco obd2 mut 3 obd2 mitsubishi
bluetooth key programmer
Model : KW901 Bluetooth
| Product name | KW901 bluetooth car diagnostic scanner For android and apple phone |
| Model | KONNWEI KW901 bluetooth |
| Connection | both android and apple are available. Android is free turque but
ios is unfree dashcommand;
Don't support upgrade system and print |
| Product name | Battery Analyzer, test pen with battery, Digital Battery Tester,
Values Lead Acid Load Battery Automotive Voltage Tester, li-ion
battery capacity/discharge tester |
| Color | 6 Color : Black White/ White Red/Black / Black Orange/Black Red/
Red |
| Usage | Auto Testing Machine, Test li-ion battery, Environment-simulated
Test Chamber |
| Power | Electronic, test the conductor, 12V 0.5-1W |
| Material | ABS housing , Hard Box , Neylon bag |
| package size (cm) | 12*7.5*4 |
| Item Net weight(kgs) | 0.03 |
| Package Gross weight(Kg) | 0.084 |
| Quantity/cn | 100pcs/ cn |
| Carton size(cm) | 39*25.5*36cm |
| Carton Weight | 8.9KG/ carton |
LCD Screen
Size(Inch) | Mni dongle/ without Screen |
| Application | For all 12V cars battery such as vehicles car/ gasoline cars/Hybrid
electric vehicle |
| IC Chip | 25k80( it is the most stable chip on market ) |
| Factory price | $6.8-$7.6 |
| Language | English is default language, please select the language you need on
phone settings interface |
| System | XP WIN7 WIN8 WIN10 |
| Protocol | Fit with all cars |
| MOQ | 1PC |
| Type | Engine Analyzer, Code Reader, Professional Auto Diagnostic Tool,
Digital Camera, automotive diagnostic tool |
| Voltage | 12V |
| Warranty | 1Year warranty |
| Applicable models | for all kinds of 12v car such as gasoline /diesel //Hybrid electric
vehicle , as see Rover, all cars, Porsche, Saab, Peugeot etc |
| Power | 0.77w 1w 12v |
| Product name | konnwei obd2 scanner , MB Star C3, FCAR F3-G Heavy Duty Truck
Scanner, Automobile inspection multimeter, XTOOL X300 Plus, OBD2 /
EOBD 16 pin car computer auto diagnostic tool / engine analyzer |
| Special features | Diagnostic Fault Code, Wifi, Improved, Waterproof |
| Function | Professional Diagnose Tool, Automotive Diagnostic Scan Tool Code
Reader car scanner tool, read trouble code, Test for car, Stable |
| Item type | OBD Code Reader, Auto diagnostic tool, Car Engine Scanner,
Connectors, Auto Key Programmer |
| Connection | Standard OBD II, WiFi, 16-pin Diagnostic Connector |
| Quality | 100% Original konnwei Brand |
| Software update | Software Update on Online forever www.konnwei.com |
| Version | 2019 Newest, V1.5 |
Protocols :
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
Default settings(user adjustable)

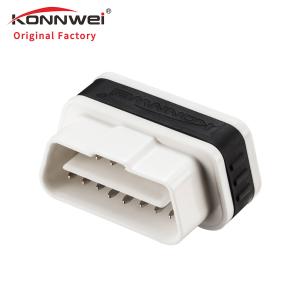

The device is a small adapter that plugged into the vehicle OBDII
connector via bluetooth, it is suitable for android smart devices
or Windows PC. With associated diagnostic procedures, Free obd
software provided in the package ). With this product, you will be
able to perform a complete computer diagnostic car and even to
correct minor faults without resorting to service stations.
Main features
- Display real time performance of your car, such as momentum,
vehicle speed, oil pressure, coolant temperature, engine load,
intake manifold pressure, throttle position and air intake
temperature.
- If the communication is terminated, this item will automatically
switch to sleep mode in half a hour.
- The adapter adopts fast and reliable chips which promise its
stable wireless connection.
- It supports all OBDII protocols: J1850 VPW, J1850 PWM, IS09141 -
2, KWP2000 and CAN
- Small size and compact structure, plug and play.
With proper software installed in the host device, you may have
following parameters read out from your vehicle:
- Vehicle Speed
- RPM
- Fuel Consumption
- Engine Coolant Temp
- Fuel Pressure
- Calculated Engine Load
- Throttle Position
- Intake Manifold Pressure
- Air Intake Temp
- Timing Advance
- Mass Air Flow
- Fuel Level
- Barometric Pressure
- EVAP System Vapor Pressure
- Fuel Trim
Color choice :
6 color:Black White/White Red/Black/Black Red/Red/Black Orange
Packing info:
Item size( cm):
package size (cm):12*7.5*4
Item Net weight(kgs):0.028
Package Gross weight(Kg):0.082
qty/cn: 100PCS/ piece,
Carton size : 39*25.5*36cm,
Carton Weight : 9.2KG/cn
Packing list
1 * KW901
1 * User's manual
1 * CD
